Effects of RTS/CTS in Multi-hop network

[ Back to Network Simulator 2 for Wireless Home Page ]

How to turn off RTS/CTS?

put this line in the TCL script.

#disable RTS for 802.11 MAC
Mac/802_11 set RTSThreshold_   3000

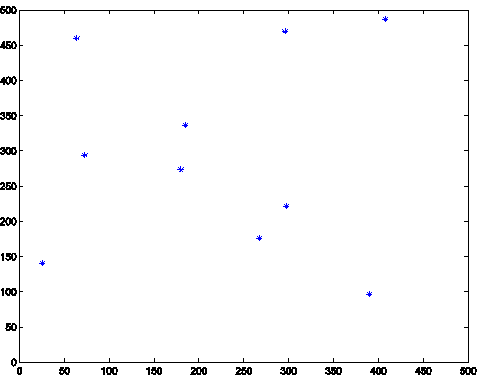

Simulation Topology:

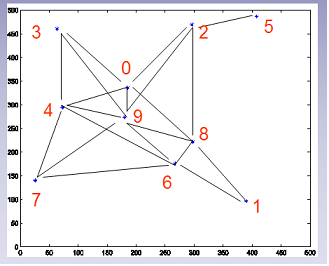

Link Connectivity Graph:

Two flows are given: 1--> 3 , and 5---> 7

Simulation Parameters:

Datarate 1Mbps
IFQ Length 50
Routing Protocol DSDV
Packet size 1000Bytes
Packet rate 25-200 per second
Transmission Range 250m
Test duration 150 sec.

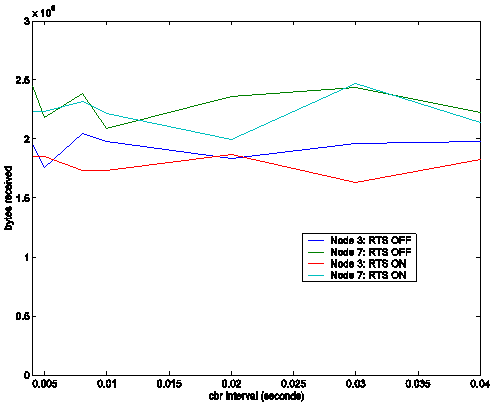

Simulation Results:


Observations & Conclusions:
